CinDraw – AN INTELLIGENT PRODUCT FOR AUTOMATED CONVERSION

CinDraw, a proprietary solution built by Ceone, provides the ability to convert legacy engineering P&ID documents in different formats into an intelligent P&ID. The built-in artificial intelligence, algorithms of the solution allowed to:

Convert and Extract - the engineering data via visual recognition of the information
Merge and Recreate - a Semi- intelligent P&ID in AutoCAD
Migrate and Integrate - Engineering data to SPPID & transform to Intelligent P&IDs

INTELLIGENT CONVERSION OF LEGACY ENGINEERING DATA WILL BENEFIT INDUSTRIES THROUGH IMPROVED EFFICIENCY AND PRODUCTIVITY, EFFICIENT INFORMATION MANAGEMENT WITH INSIGHTFUL BUSINESS ANALYTICS.

Organisations need to respond to ever changing end user needs by being more innovative with a faster turnaround at a very competitive price. The digital transformation of existing engineering data is critical for consolidating industry knowledge, improving efficiency, and fully leveraging the advantages of digitization.
Some of the Industry Challenges include:

High manual effort in standardizing of existing information
Maintaining accuracy and reliability in the digitization process

Inheritance of legacy drawings in different formats.
Contradicting and Obsolete Engineering Data

Fill this form to contact us, if you have any futher questions.

First Name

Last Name

Email address

Message

I hereby certify that the information above is true and accurate.

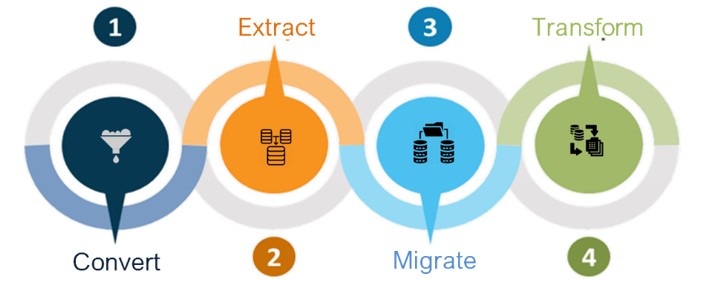

CinDraw enables Automated Digital Conversion in 4-step process

Extract of Text for Notes and related details
Extraction and Compilation of attributes of components like equipment,nozzle,valves etc.
Semi Intelligent P&ID in AutoCAD

Regenaration of Intelligent P&IDs with manual intervation in Alignment of labels, Checking of attributes,connection of OPCs

Input files (images/pdf/dwg/dgn) to AutoCAD by

Cleaning & consolidation of text

Updating Polylines,Layers,Flow Direction

Addition of Blocks for components

Compilation and migration of P&ID data,based on the built in intelligence by recognising the SPPID libraries, customised symbols

KEY FEATURES

Flexible and Customizable solution to enhance legacy data

Faster conversion and extraction of engineering data

Automated validation at various stages of conversion life cycle

Scalable application with user friendly UI to handle large volume

Compliant to Engineering standards ensuring consistency and accuracy

Seamless integration with end user software like SPPID/AVEVA

Translating Automation into VALUE

It has been observed that if not implemented properly, the digital journey is slow and often inconsistent. The organizations need to be prepared for the digital transformation challenges which include

29 - 35%

Savings on Manual Effort and Cost due to Automation

4 - 25

Times faster extraction of data and conversion to intelligent PIDs

100%

Compliance to Engineering standards

100%

Automated Validation of Extraction and Conversion
